- Address: 555 South Liberty Street

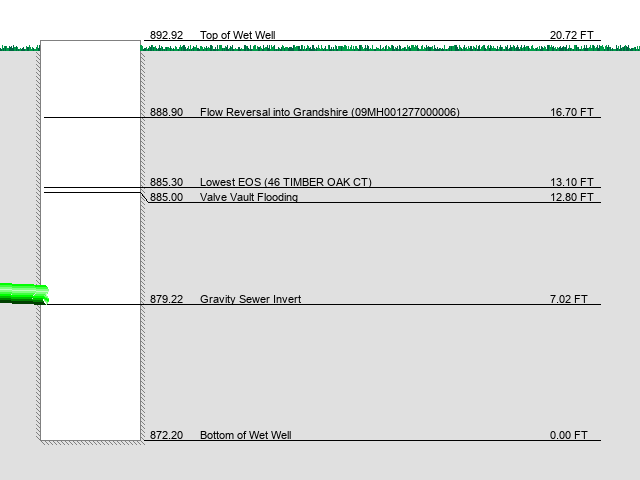

Critical Elevations

*Note: Critical Manhole in the map below is the Manhole where the flow will reverse into another sewer.
Forcemain Plan Link 1 Plan Link 2
- Size: 8 inch
- Length: 2,628 feet
- Material: Unknown
- Outfall Manhole: Plan Link
Pumps
- Make: Flygt 3127
- Model: 3127, 10Hp, 460V, 3Ph, 13A, 1735 RPM
- Position 1: 3127.090-1860, serial#0160061, year 2001
- Position 2: 3127.070-0074, serial#1740030, year 2017
- Spare: 3127.090-1860, serial#0160062, year 2001
- Design Flow: 475 GPM
- Curves:
Motor Starters
- VFD
- Soft Start
- Across the Line
Grinder
- Present: Yes
- Make: Muffin Monster
- Model: 30000-0018
- KW:
- Age:
Standby Generator
- Present: No
- Make:
- Model:
- KW:
- Age:
Level Control
- Means of Detection: Probe
- Level Controller: Multismart
- PLC:
- Detection Increment: 12 inches
Critical Consumables and Location of Spares
- Fuses:
- Phase Monitors:
- Power Supplies:
Communications
- Type: (radio/cellular/fiber)
- Communication Path for Radios:
Gravity Sewer Storage Capacity Below Lowest EOS
- Wet Well Storage: 3,878 gal above 5 ft depth
- Inline Storage: 28,316 gal
- Avg Dry-Weather Flow: 54,000 to 77,000 gpd
- Hours of Storage in Dry Weather = 10 to 14 hours
Deficiencies
- Forcemain needs scoured on a regular basis.
Trib Area View Larger Map

*Note: To view map, right click on image and open image in new tab.
